src/imageproc.h File Reference

STATUS: work in progress imageproc More...

#include "definitions.h"
#include "array.h"

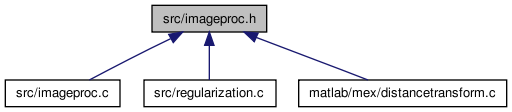

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
Array *	bresenham_line (int start[2], int end[2])
	Bresenhams Line-drawing-algorithm.
Array *	bresenham_linesegments (const Array *points)
	Connected line-segments with bresenhams Line-drawing-algorithm.
Array *	disttransform_deadreckoning (const Array *in, Array *dt)
	calculate the (signed) distance-transform of a binary image.

---

Detailed Description

STATUS: work in progress imageproc

Image Processing Functions.

Definition in file imageproc.h.

---

Function Documentation

Array* bresenham_line	(	int	start[2],
		int	end[2]
	)

Bresenhams Line-drawing-algorithm.

(stolen and modified from Wikipedia)

Parameters:

	start	coordinates of starting point
	end	coordinates of last point

Returns:

a pointer to the line saved in pairs (x,y) of the coordinates (2 x N INT-Array);

Definition at line 237 of file imageproc.c.

Array* bresenham_linesegments

(

const Array *

points

)

Connected line-segments with bresenhams Line-drawing-algorithm.

Calls bresenham_line() for each pair of points.

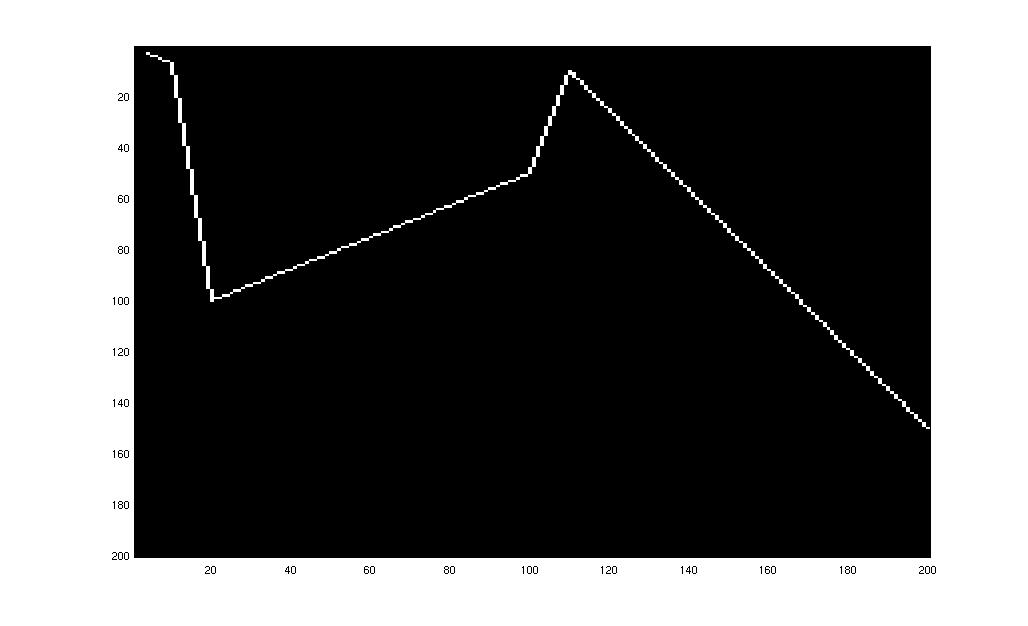

Example:

Parameters:

points

2xM INT-array containig coordinates points through which the line-segments should lead

Returns:

a pointer to the line saved in pairs (x,y) of the coordinates (2 x N INT-Array);

Definition at line 197 of file imageproc.c.

Array* disttransform_deadreckoning	(	const Array *	in,
		Array *	dt
	)

calculate the (signed) distance-transform of a binary image.

This distance-transform (DT) of a binary image includes at each pixel the shortest distance to the closest nonzero point in the input image.

Example (left is the binary matrix, right the DT; in the upper right corner is another white pixel):

This implementation uses the dead-reckoning algorithm from

	 @article{grevera2004dead,
  	   title={{The" Dead reckoning" signed distance transform}},
	   author={Grevera, G.J.},
	   journal={Computer Vision and Image Understanding},
	   volume={95},
	   number={3},
	   pages={317--333},
	   year={2004}
	 }


Parameters:

	in	INT-array representing a binary image
	dt	DOUBLE-array of same dimensions as in, or NULL (alloc in function)

Returns:

ptr to the distance transform of in

Definition at line 51 of file imageproc.c.
